UPANBIKE
B634 Bicycle Pedals
B634 Bicycle Pedals
Couldn't load pickup availability
Specifications

Product name:UPANBIKE Bearing Bike Pedals 9/16'' Spindle Ultralight CNC Aluminum Alloy Flat Platform For Mountain Road Bicycle
 Pedals Body Material:Aluminum alloy
 Axis Material:chromium-molybdenum steel
 Size:68mm*89mm*25mm
 Axis Diameter:14mm
 Spindle:9/16inch
 Color:black

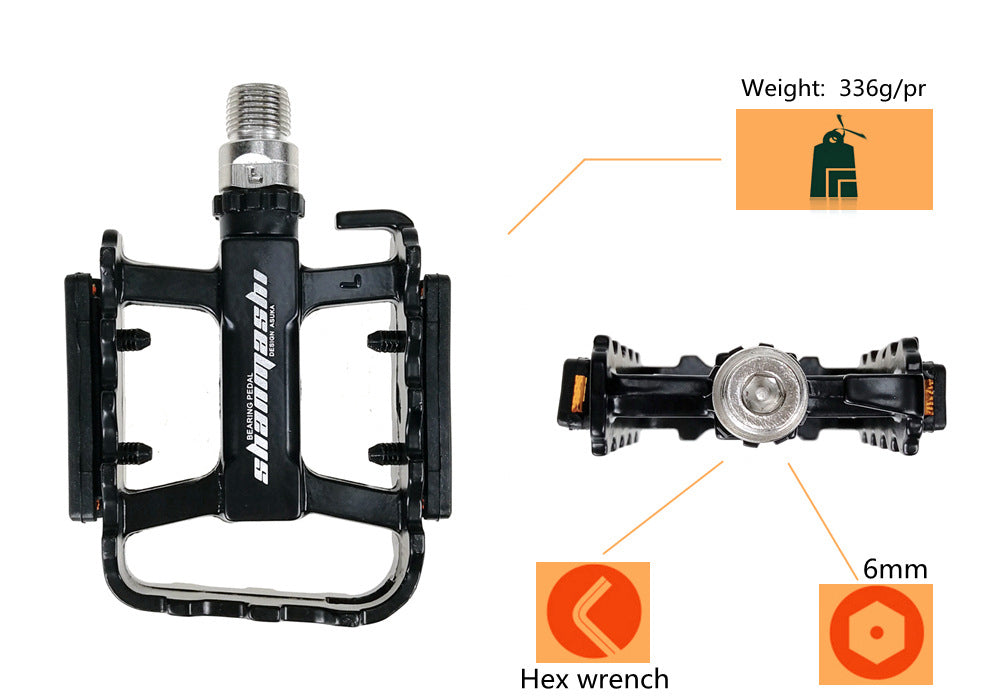

 Net Weight:About 336g/pair
 Installation Tool:6mm Hex wrench
 Package included:
 -A pair of bike pedals

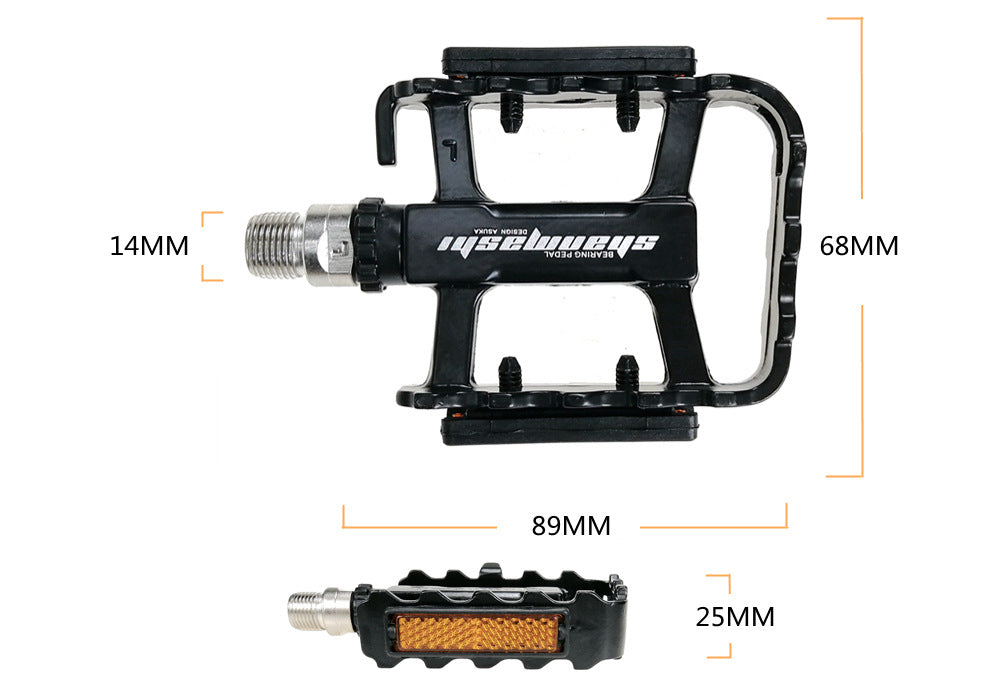

 SIZE SPECIFICATIONS

 * Length:89mm
 * Width:68mm
 * Thickness:25mm
 * Axis:14mm

 Installation:

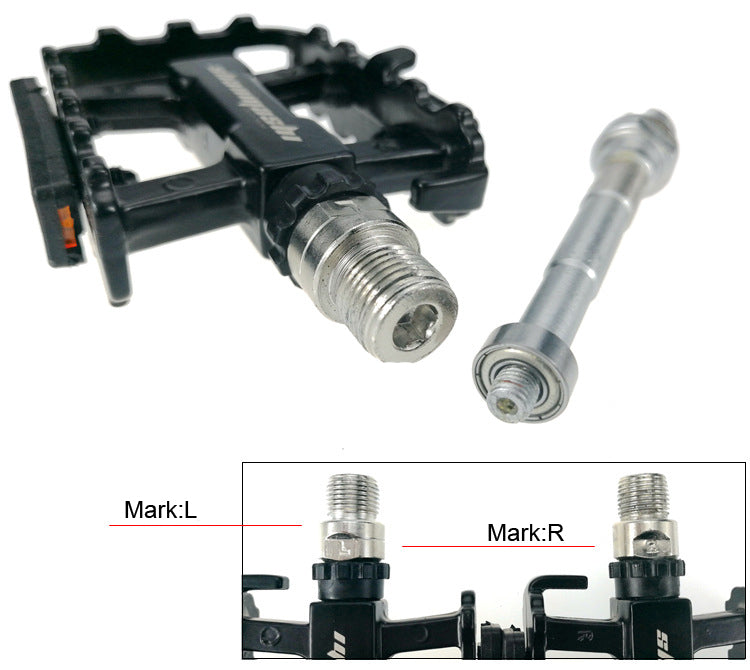

 1.First,the pedals are distinguished as L for left and R for right.
 2.Drop a little bit of lubricating oil on the screw threads and put the locking gasket between the pedal and the brace (the smoother side faces outside).
 3.Use wrench to wrench the pedal tightly.(The left foot is reverse threaded).
